GUARNIZIONE TTQ 105X89.5X6
| Price: |
|
|---|---|
| Item code: | 33TTQ105 |
| Weight: | 0,075 Kg |
| Quantity: |
Users feedback
Description

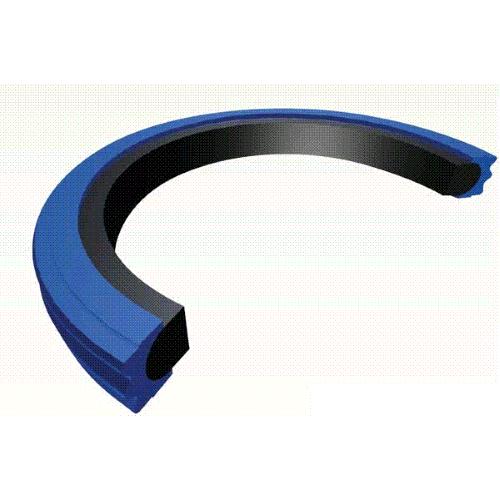

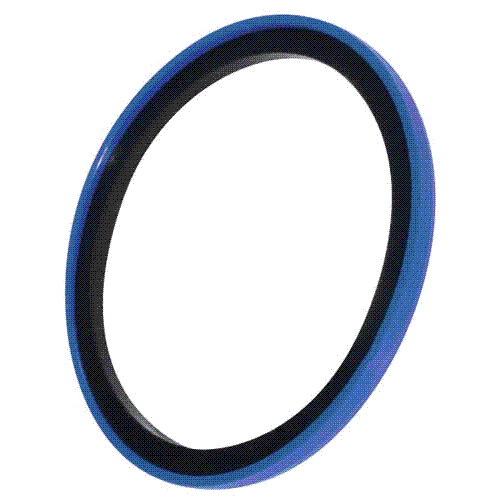

Seals for TTQ Piston composed of 2 elements double polyurethane effect +NBR: they are interchangeable with Seals for SIMKO300 Piston - KR - PSQ - LSIM300P.TTQ type is suitable for piston seals. It’s composed of two elements: a polyurethane sealing ring "Tecnolan" and an NBR ring with energizing function. For the particular profile of the thrust element with rectangular section and its characteristics differs from the type TTO as it prevents the torsion in the seat. The TTQ type is used in double-acting pistons with a reduced axial space of the seat.
GENERAL CHARACTERISTICS:
Easy to install
High resistance to abrasion
High resistance to extrusion
Low value of deformation
